DJM-V10 Creative Style 6-Channel Professional DJ Mixer

CRAFT YOUR SOUND

Forge a new sound with the DJM-V10; a new breed of mixer, born of fresh thinking. It’s built to allow the most creative DJs to craft original soundscapes.

This 6-channel unit – loaded with unique features – produces warm audio full of energy and presence. So, take full control of your mix and get ready to create something the crowd has never heard before – either performing solo or back-to-back with another DJ.



KEY FEATURES



ELITE SOUND QUALITY

Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to produce a full low-end, vibrant mids, and precise highs.

ESS Technology

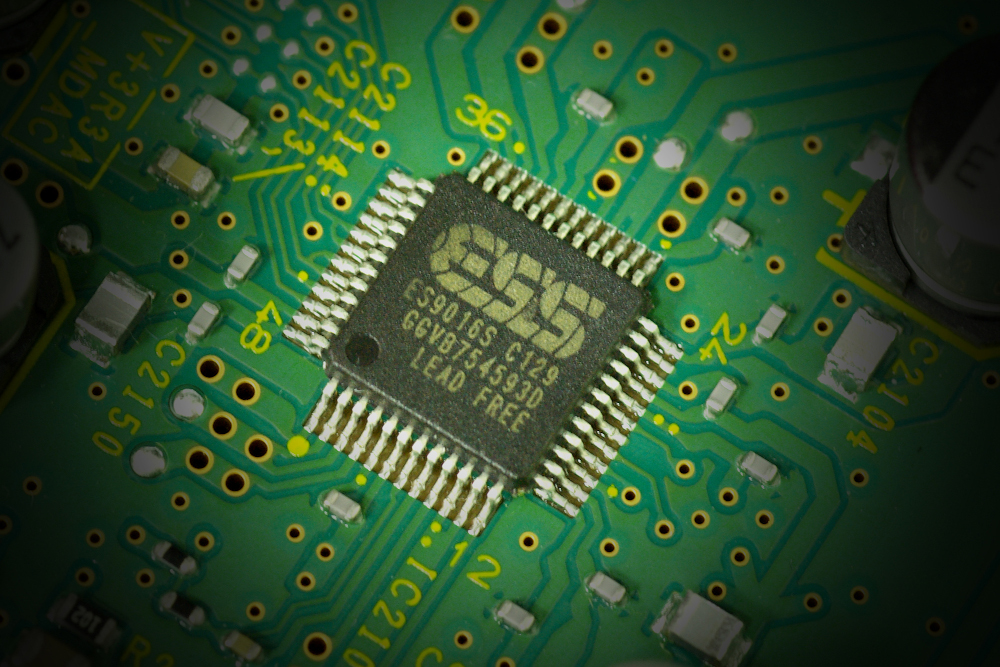

ESS Technology 32-bit D/A converter

A 32-bit SABRE 8-channel DAC (ESS Technology’s ES9016S) is used for both the master and booth outputs. The DAC output is driven in parallel to further improve S/N. To maximize the DAC’s capability, we’ve honed the output circuit by improving operation amps and capacitors and performing optimal tuning. This results in a sound that’s low-noise, high-resolution, and easy to listen to – even at high volume.

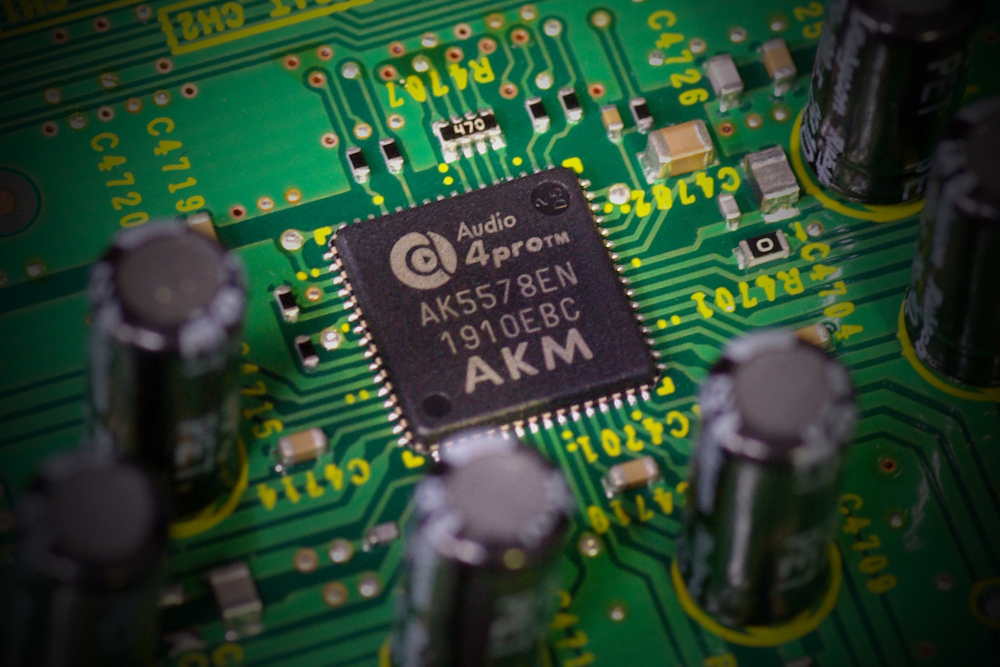

32-bit A/D converter

32-bit A/D converter by Asahi Kasei Electronics

The analog channel inputs use a 32-bit premium ADC (AK5578EN/AK5574EN) with VELVET SOUND technology by Asahi Kasei Electronics. By redesigning the input differential conversion circuit and optimizing the audio parts used, we’ve created a rich, high-definition and low-distortion sound.

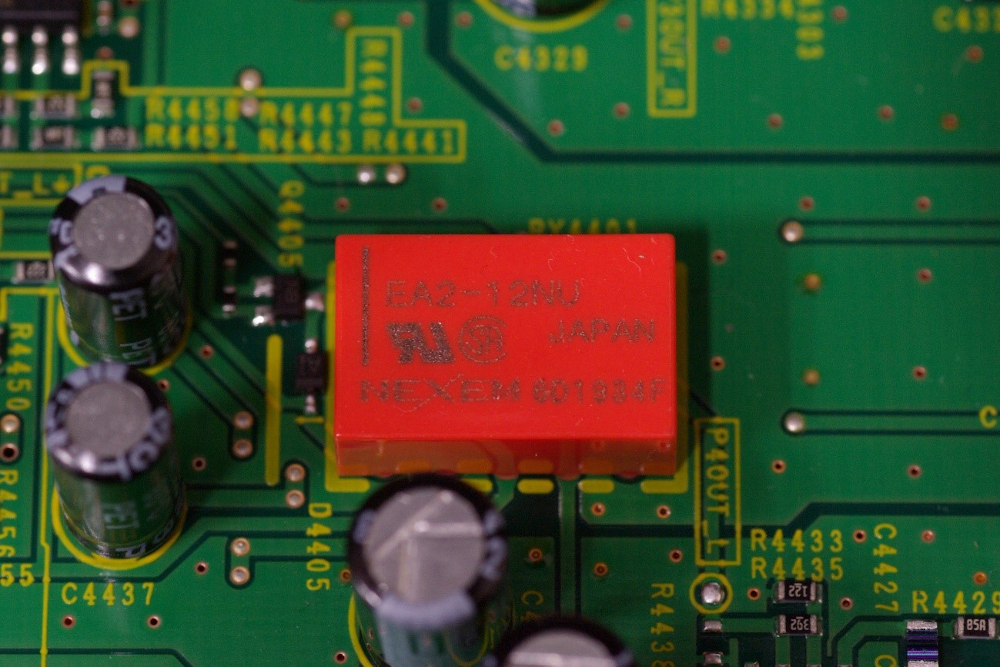

EM Device

EM Device mechanical relays

The line/phono input switch, master output, and headphones output circuit use high-performance, highly durable mechanical relays (EA2 relays) from EM Devices Co. They eliminate signal distortion due to the use of non-linear electrical components, completely cancelling unpleasant noise in the mute circuit.

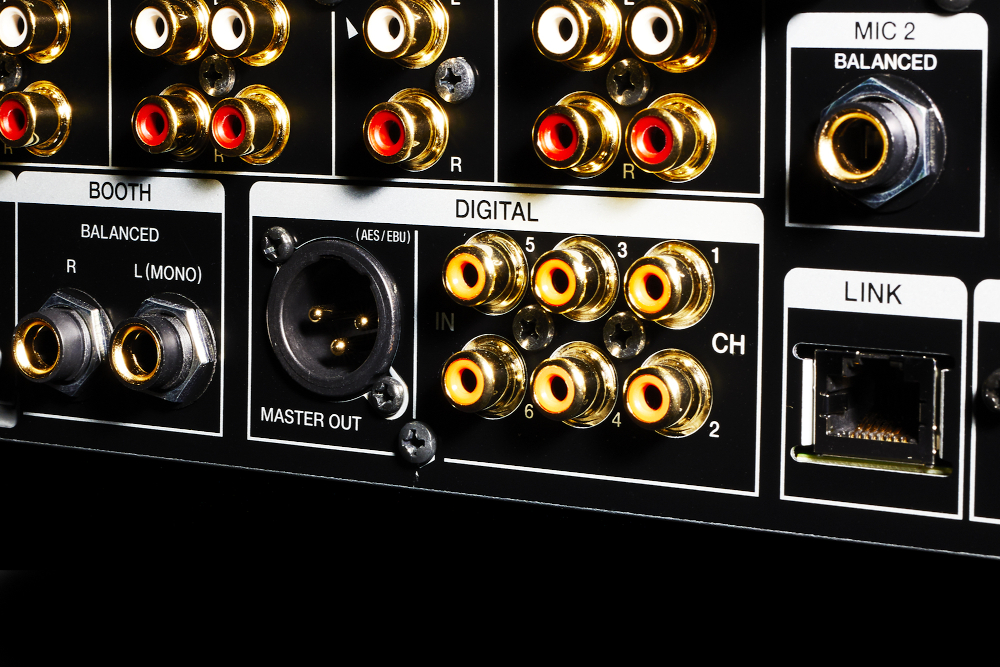

AES/EBU outputs

AES/EBU output

The master outputs feature a noise-resistant balanced transmission system and a professional digital audio-standard AES/EBU terminal that’s suitable for long-distance transmission in large venues. This means you can deliver audio to the audience without degrading it.

6 CHANNELS WITH A WIDE RANGE OF INPUTS

You’re free to create your perfect setup with 6 channels and a host of different input types.

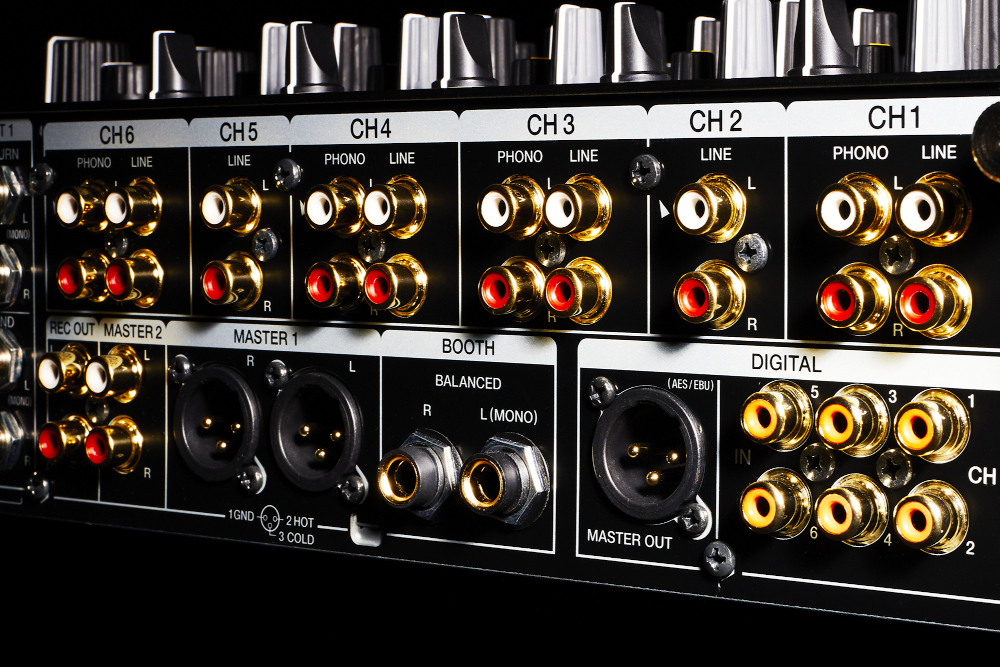

6 channels

6 channels

Choose your ideal setup and plug in everything from CDJs and turntables to samplers, synths, and drum machines. Setting up is easy thanks to analog input terminals that line up with each channel on the top panel, so you’ll always know where to connect your cables when you’re in the booth.

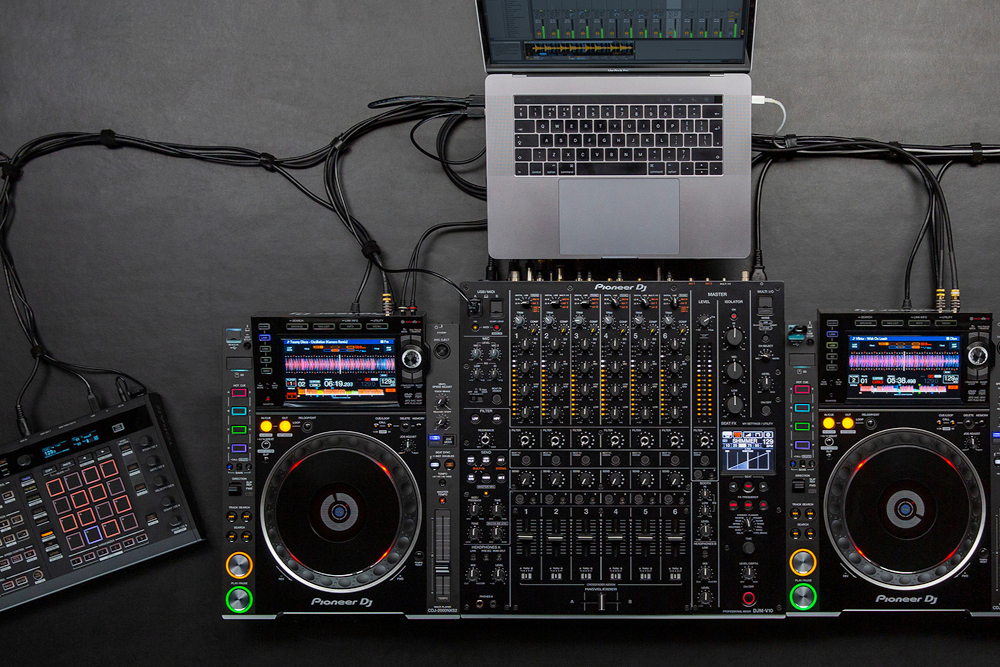

USB/MIDI terminal

USB/MIDI terminal

With a 96 kHz/24-bit sound card, you can input and output up to 6 stereo channels without any deterioration of sound quality when connected to a PC/Mac. The input and output of the send and master signals, as well as the input and output of individual channels, can be routed via USB to your computer. Enjoy smooth DJ handovers by simultaneously connecting 2 laptops (PC/Mac).

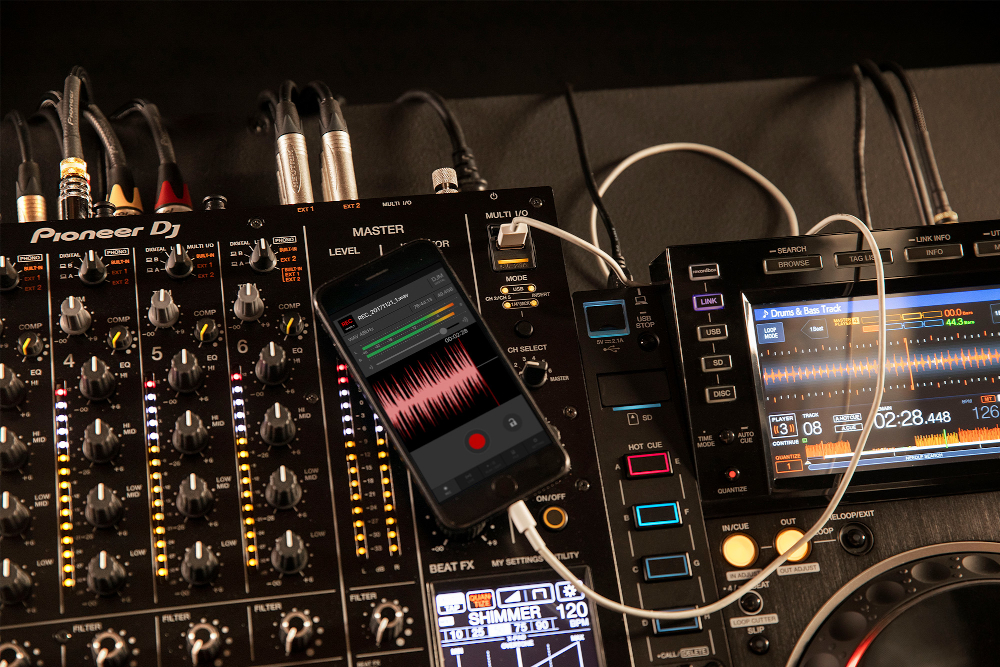

MULTI I/O terminal

MULTI I/O terminal

A USB A terminal and a 1/4-inch TS jack are mounted on the top and the rear of the mixer. You can arrange your sounds using the RMX-1000 app for iPad or another FX app, or record your mix directly to the DJM-REC app without any deterioration in sound quality. You can also route insert-type hardware effect units, such as the RMX-1000, through the 1/4-inch TS jack connection.

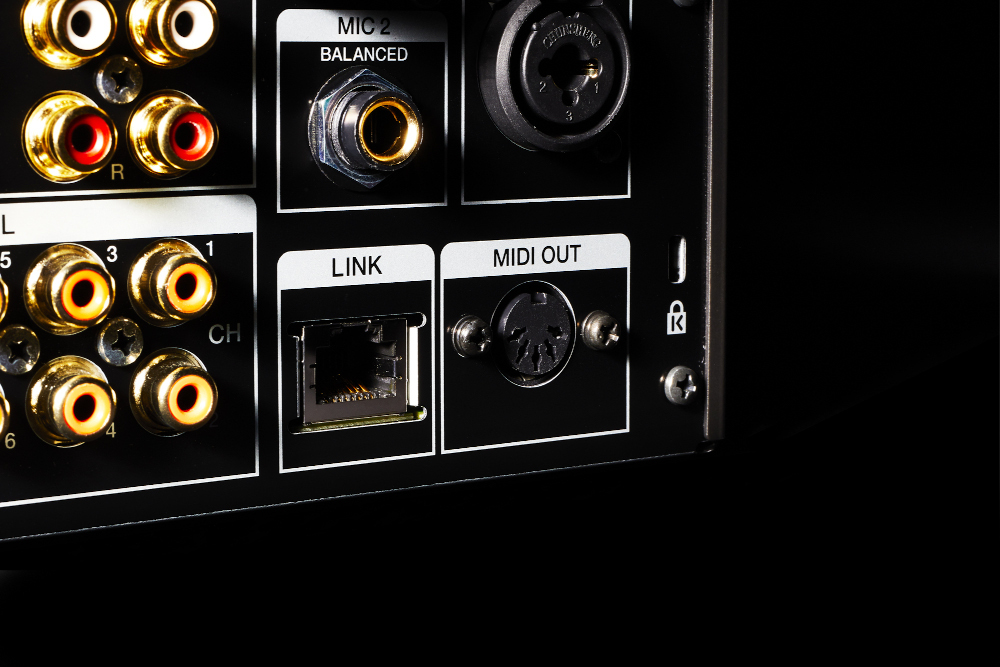

DIN Midi out

DIN MIDI out

Sync external production gear using the BPM from rekordbox. Quantized BPM information is shared via Pro DJ Link when connected to a LAN hub. When not using PRO DJ Link, the DJM-V10’s BEAT FX suite will analyze and display a track’s BPM.

4-BAND EQ AND COMPRESSOR

Take full control of your mix with the newly developed 4-band EQ. A built-in compressor enables further adjustment of the loudness of your tracks.

EFFECTS FOR MORE CREATIVE EXPRESSION

The expanded send/return section enables you to add external FX, or even combine them with built-in FX. Create unique sounds; the possibilities are nearly limitless

Send section

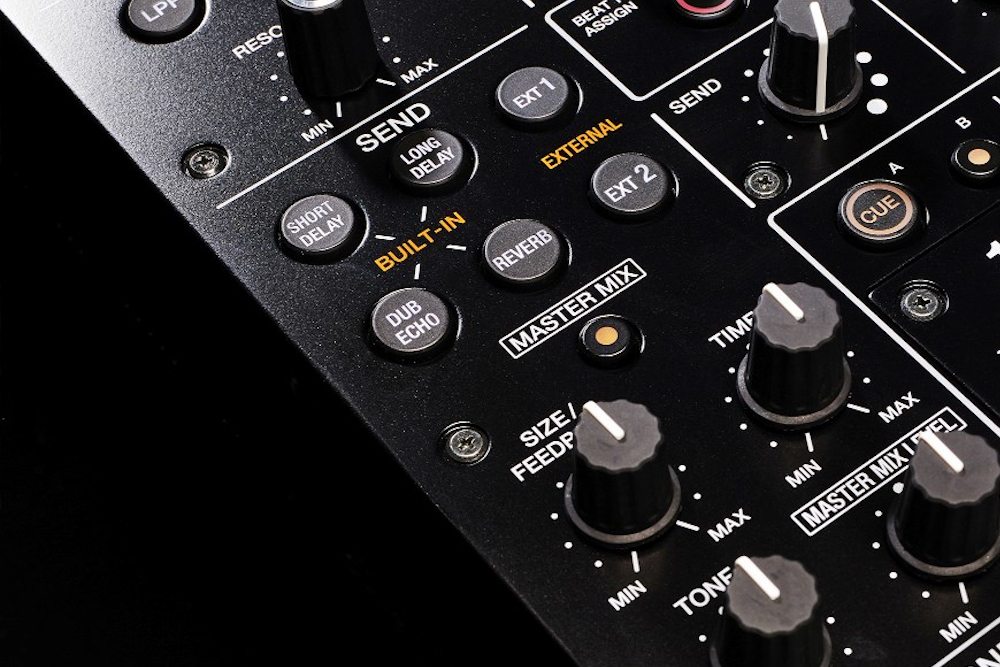

Send section

Send audio to one of four built-in FX and up to two pieces of external equipment to create unique sounds and even live remixes. You can connect guitar pedals, FX units, and more to the TS jack send/return terminals.

Filter

Filter

Drastically change the sound of a track, or subtly tweak it, using the newly developed filter with resonance control. Switch on high or low pass by pressing either button, then turn the knob from all the way to the left (no filter applied) to the furthest position on the right (maximum filter applied). Because high and low pass are separated you have twice the resolution to play with compared to the filter on the DJM-900NXSV2, allowing for more pronounced adjustments.

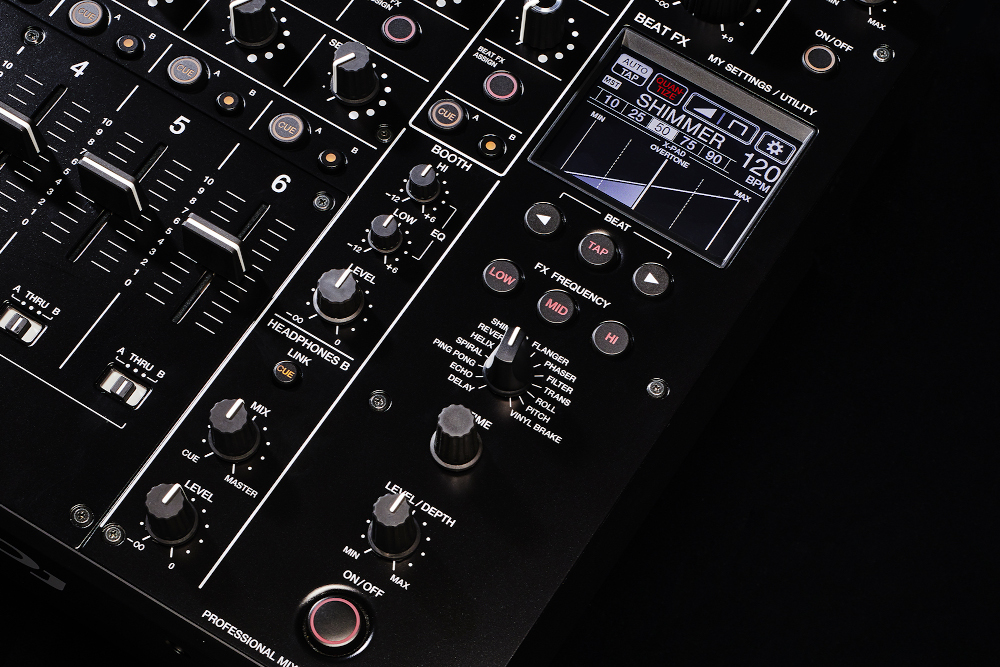

Beat FX

Beat FX

Control the X-Pad via the touch display for more intuitive effects manipulation and bring harmony to sound sources such as vocals and synthesizers to create unique sounds. You can directly select the channel you want to add the effect to with the BEAT FX Assign button on each channel. We’ve also added Shimmer; a new Beat FX that adds brightness to the original audio.

3-BAND MASTER ISOLATOR

Effortlessly control the tone of your entire mix with the 3-band master isolator, featuring new boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large dials and drive the crowd wild by drastically changing the sound.

DUAL HEADPHONES OUTPUT AND BOOTH EQ

The DJM-V10 makes back-to-back monitoring simple and comfortable. You can tweak the sound in the DJ booth just the way you like.



DJ Mixer
A/D Converter 32 bit
Beat FX Delay
Echo
Ping Pong
Spiral
Helix
Reverb
Shimmer
Flanger
Phaser
Filter
Trans
Roll
Pitch
Vinyl Brake
Channels 6
D/A Converter 32 bit
Depth 46.71 cm
DVS Control rekordbox Serato DJ Pro TRAKTOR PRO 3
Fader Curve 3
Filter HPF
LPF
Height 10.8 cm
Inputs 6 DIGITAL (Coaxial)
6 LINE (RCA)
4 PHONO (RCA)
LAN 1
Mic Connection XLR / 1/4-inch Jack Combo
1/4-inch TRS Jack
MIDI Control Full assignable MIDI controls
MULTI I/O 1/4-inch jack
USB (Type A)
Outputs 2 MASTER (XLR,RCA)
1 BOOTH (1/4 inch TRS Jack)
4 HEADPHONE MONITOR (1/4 inch Jack,mini-jack)
1 REC OUT (RCA)
1 DIGITAL (AES/EBU)
1 MIDI (DIN)
S/N Ratio Line 105 dB
S/N Ratio Mic 79 dB
S/N Ratio Phono 88 dB
Sampling Rate 96 kHz
SEND Short Delay
Long Delay
Dub Echo
Reverb
2 Externals (1/4-inch TS jack)
Send/Return 3 SEND (1/4-inch TS jack)
3 RETURN (1/4-inch TS jack)
USB 2 USB B ports
1 USB A port
Weight 11.90 kg
What is in the box DJM-V10 Power Cord Warranty (for some regions) Quick Start Guide Precautions for Use
Width 43.8 cm
