TS-WX010A Compact Powered Subwoofer
From RM183.17/month
TS-WX010A Compact Powered Subwoofer
- RMS 50W / MAX 160W Class D Amplifier
- 2- Way Easy Installation (Vertical / Horizontal)
- Down Firing Subwoofer System
- Compact Design
Compact in size with exceptionally low power consumption, yet able to produce powerful and impactful bass, the TS-WX010A compact subwoofer is a direct result of Pioneer’s over 80 years’ experience designing and manufacturing loudspeakers, combined with an understanding of the evolving automotive landscape.
Small Footprint with High Efficiency
Due to its small size and high electrical efficiency, the TS-WX010A compact subwoofer is a perfect upgrade for many of today’s vehicles, especially EV (electric vehicle) and gasoline/electric hybrid vehicles where low weight, small size and low power consumption are a priority.
Measuring only 9-inches wide, 4-5/8” deep, and 2-3/4” high, and weighing just under 3-1/2 pounds, the TS-WX010A is the smallest and lightest powered subwoofer in the Pioneer lineup. In comparison, the TS-WX010A is 48% smaller than Pioneer’s next smallest powered subwoofer, the TS-WX130DA.
Small Subwoofer with High Power
The TS-WX010A features a 6-5/8” by 3-1/8” rectangular woofer with a low mass / high strength aluminum cone, urethane surround and high-power magnetic circuit housed in a down firing sealed enclosure made of high-grade resin. This compact subwoofer is powered by a built-in Class-D amplifier rated at 50 watts RMS output (160 watts maximum).
Vertical or Horizontal Installation
The compact dimensions of the TS-WX010A allows installation inside the passenger compartment of most vehicles, providing the potential to integrate acoustically with the vehicle’s full range speakers and seamlessly enhance both output and overall sound quality. With installation options that include vertical or horizontal mounting, the TS-WX010A is optimized for installation in the passenger side footwell, where its small size affords the ability to be attached near the underside of the dashboard or the center console.
Warning: This product must never be installed anywhere in the driver area or elsewhere in the vehicle where it might interfere with its safe operation or impair the performance of operating systems or safety features, including air bags, controls and indicators (lights). Appropriate installation locations will depend on the vehicle model including, specific to hybrid and electric vehicles, the location of the vehicle battery and battery charging system, and where the TS-WX010A can be attached securely.

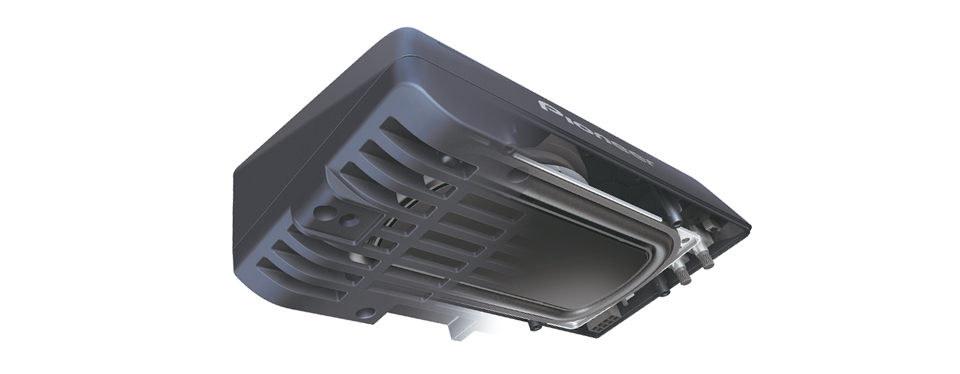

Down firing system
For foot space and effective reproduction of deep, powerful bass.
The TS-WX010A features a full grille and down firing structure for cone protection to be installed inside your vehicle interior. This combines deep, powerful bass while seamlessly integrating physically, electrically and most importantly acoustically into the vehicle.

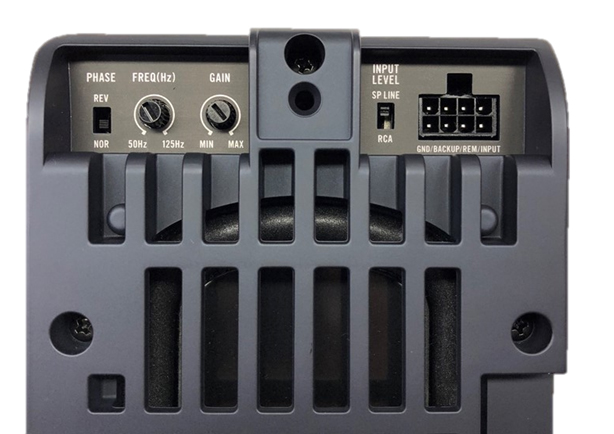

Bass Sound Creator
Designed to be small in size with reduced power consumption while still producing impactful bass output for enhanced sound quality, the TS-WX010A accepts both RCA type line level and speaker level inputs for connection to aftermarket audio systems or integration into factory installed systems, making installation a simple process.
| Sub-woofers | |
| Amp DIN | 50 Watts |
| Amp Grounding | Negative |
| Amp Max Current Consumption | 4.2 A |
| Amp Max Power Output | 160 Watts |
| Basket Material | Stamped Metal |
| Built In Amp | Yes |
| Cone Material | Cellulose fiber |
| Continuous Power handling (RMS) - Watts | 50 Watts |
| CTA-2031 Compliant | Yes |
| Damper | Aramid |
| Drive Cone Material | Alminium |
| Frequency Range | 20 Hz to 200 Hz |
| Input Level (@ Gain Max) RCA | 70mV+70mV/22kOhm |
| Input Level (@ Gain Max) Speaker Line | 1.4V+1.4V/5KOhm |
| Magnet Material | Ferrite |
| Magnet Weight | 9.5 oz |
| Maximum Peak Power Handling - Watts | 160 Watts |
| Power Source | DC 14.4V |
| Sensitivity (1W/1m) | 98 dB (In car,installed at the foot space) |
| Shape | Oval |
| Size | 6-5/8" x 3-1/8" |
| Surround Material | Urethane |
| Surround Type | Rolled |
| System Type | Powered |
| Voice Coil Bobbin | Glass imide |
| Voice Coil Type | 9.5 oz |
| Voice Coil wire | Copper |
| Warranty | Yes |
